Sorting Grab

Short Description:


  • Product Name: Sorting Grab
  • Material: Q345B, NM400, Handox400/500 etc.
  • Machine Tons: 5-100tons Excavator
  • Color: Original color or as customer's request
  • Delivery Time: 10 days after payment
  • OEM : Available
  • Warranty: 6 months
  • MOQ: 1 PCS
  • Product Detail

    Product Fits

    Product Tags

    Main features:

    1) Using Q345 manganese plate steel, high strength, and corrosion resistance.
    2) The pin is made of 42CrMo alloy steel, with butt-in oil passage, high strength, and good toughness.
    3) Rotary motor imported from Switzerland.
    4) The oil cylinder adopts honing tube, imported HALLITE oil seal, short working cycle, and long life.

    Application:

    All kinds of large-scale, bulk materials loading and unloading or handling operations.

    Sorting Grab

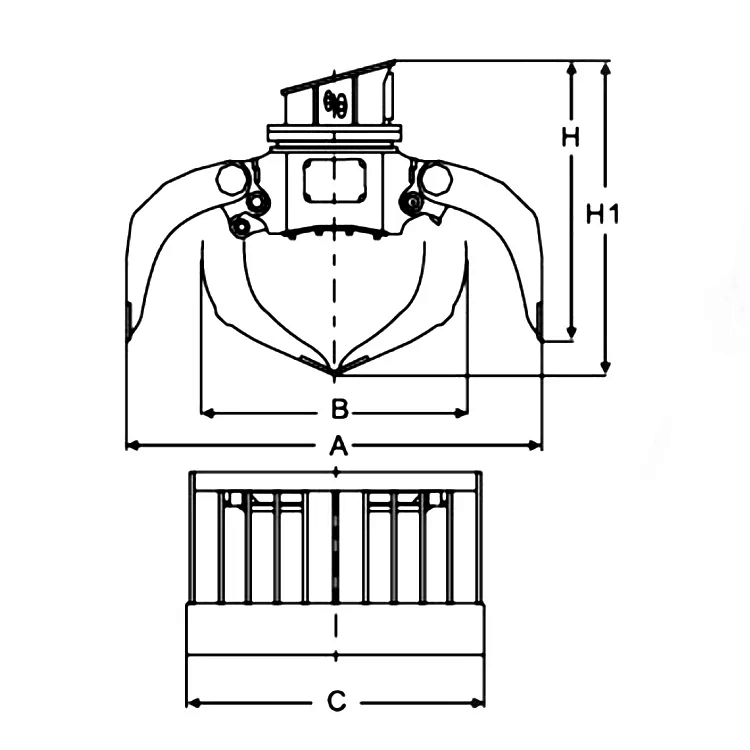

     Item/Model Unit RSSG04 RSSG06 RSSG08 RSSG10
     Suitable Excavator ton 6-12 12-18 18-25 25-32
     Weight kg 470 1050 1370 1700
    Operating Capacity m* 0.60 0.60 0.80 1.00
    A mm 1730 2175 2700 3300
    B mm 960 1200 1500 1880
    C mm 595 745 935 1160
    H mm 1350 1700 2100 2650
    H1 mm 1570 1970 2400 3080
    Driving Pressure bar 300 300 300 300
     Driving Flow Ipm 180-230 180-230 200-250 250-300
                                           Rotating Motor Set Up Pressure bar 120 120 120 120
     Motor Flow lpm 30 30 30 30
     Frequency r/min 16-18 16-18 16-18 16-18

    tu


  • Previous:
  • Next:

  •

    BRAND MODELS
    CASE CX130, CX130B, CX135SR, CX17B, CX160B, CX210B, CX225SR, CX240B, CX27B, CX290B, CX31B, CX330B, CX350B, CX36B, CX460, CX50B, CX75SR, CX80, 9050B, CX31B, C, 36B, CX25, CX31, CX36
    HITACHI EX27, EX35, EX100, EX120, EX130, EX135, EX200, EX210, EX220, EX230, EX300, EX370, EX400, EX550, EX55UR-3, EX58, EX60-1, EX700, EX750, EX75, EX80U, EX90, ZX110, ZX120, ZX135US, ZX140W-3, ZX160, ZX17U-2, ZX180LC-3, ZX200, ZX210, ZX225, ZX230, ZX240LC-3, ZX250LC-3, ZX270, ZX30-U2, ZX330, ZX35U, ZX40U, ZX400-3, ZX450-3, ZX50-2, ZX50U-2, ZX60, ZX600, ZX650-3, ZX60USB-3F, ZX70, ZX70-3, ZX75US, ZX80, ZX80LCK, ZX800, ZX850-3
    JCB 2CX, 3C, 3CX, 4CX, 8018, JCB8040
    JOHN DEERE JD120, JD160, JD200, JD240, JD270, JD315SJ, JD330
    KOMATSU PC10, PC100, PC110R, PC120, PC1250, PC130, PC135, PC138, PC150-5, PC160, PC200, PC220, PC228US, PC270, PC300, PC360, PC400, PC450, PC550, PC650, PC1000, PC1200
    KUBOTA KU45, KX-O40, KX080-3, KX101, KX121, KX151, KX161, KX41, KX61, KX71-2, KX91, KX61-2S, KX91-3S
    CATERPILLAR 302.5C, 303, 304, 305, 307, 308, 311, 312, 314, 315, 320, 322, 324DL, 325, 328D, 329D, 330, 330B, 330C, 330D, 330E, 330GL, 336D, 345, 345CL, 345F, 350, 416, 420, 428
    DAEWOO S015, S035, S130, S140, S175, S180, S210, S220, S225, S280, S290, S300, S320, S330, S340LC-V, S35, S370LC-, S400
    DOOSAN DX27, DX35, DX140, DX140W, DX180LC, DX225LC, DX255LC, DX300, DX340LC, DX420LC, DX480LC, DX520LC, DX55/60R, DX80
    HYUNDAI R110-7, R120W, R130, R140, R145, R15, R16, R160, R170, R180, R200, R210, R220LC, R235, R250, R280R290, R320, R35, R350, R360, R380, R420, R450LC, R480LC-9, R500, R520, R55, R60CR-9, R75-5, R80
    KOBELCO SK025, SK027, SK030, SK032, SK035, SK040, SK045, SK050, SK070, SK075, SK100, SK120, SK125, SK135, SK140, SK170, SK200, SK210, SK220, SK225SR-2, SK235SRLC, SK250, SK300, SK30, SK320, SK330, SK350, SK400, SK480
    LIEBHERR 922,924
    SAMSUNG SE130LC, SE200, SE210LC, SE280LC, SE350LC
    SUMITOMO SH120, SH125X-3, SH135X, SH160-5, SH200, SH210, SH220, SH225, SH240, SH300, SH450
    VOLVO EC140, EC145C, EC160, EC180C, EC210, EC240, EC290, EC330, EC360, EC460, EC55, EC88, ECR58, ECR88, EW130, EW170, MX135WS/LS, MX175WS, MX225LS, MX255LS, MX295LS, MX365LS, MX455LS, MX55/W, SE130LC-3, SE130W-3, SE170W-3, SE210LC-3, SE240LC-3, SE280LC-3, SE360LC-3, SE460LC-3, SE50-3, EC700C
    YUCHAI YC15, YC18-2, YC18-3, YC25-2, YC30-2, YC35, YC45-7, YC55, YC60-7, YC65-2, YC85, YC135
